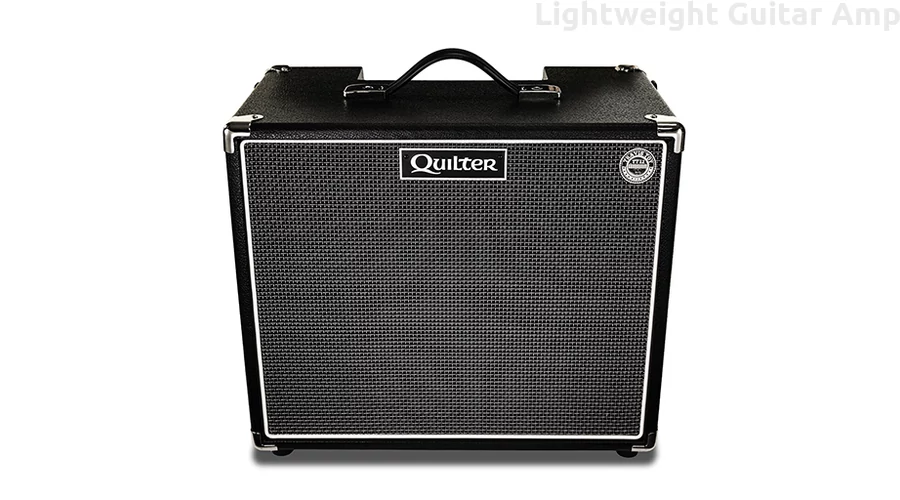

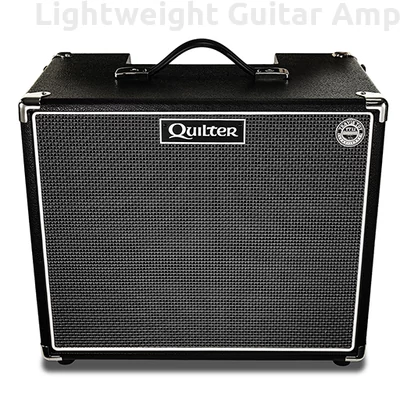

QUILTER TRAVIS TOY 12
More pictures
Youtube videos
Description
The Travis Toy 12 is the ultimate 12 inch steel guitar amplifier modular combo. It is powered by a remove-able Tone Block 202 head for isolation room work, and featuring tilt back legs for live stage use. Developed in conjunction with Quilter and Eminence, it represents the culmination of Travis' lifetime effort to build a legacy of great tone, honest value, and effortless performance for the Steel Guitarist.
Parameters
| Weight | 12.25Kilograms |
| Handling power | 200Watt |
| Power Amplification | Tone Block 202 Amplifier |
| AC Power Req. | 100-240Vac, 50-60Hz, 250W max |
| Input Connections | 1/4" mono, 2meg impedance. |
| Effects Loop | 1V full scale, 1K Send impedance, 47K Return impedance. |
| Direct Out (Rear) | XLR-M, 300mv full scale, balanced, ground lifted, 10K min. |
| Signal Out (Front) | TRS, switchable, Line Out pre-Master +4dB balanced, or Headphone post-Master. |
| Speaker 1 Output | 8 ohms, 200 W minimum recommended rating |
| Speaker 2 Output | 4 ohms, 200 W minimum recommended rating |
| Dimensions | 8.5" x 7.25" x 3.25" (21.6cm x 18.4cm x 8.3cm) |
| Speaker | Eminence Travis Toy Double T 12 |
| Nominal Basket Diameter | 12”, 305 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating** | 300 W |
| Resonance (Fs) | 53 Hz |
| Usable Frequency Range | 50 Hz – 3.8 kHz |
| Sensitivity*** | 100.2 dB |
| Dimensions | H 16 inches (40.64 cm) x W 18.25 inches (47 cm) x D 10.75 inches (27.3 cm) |
| Included Accessories | Aluminum Amplifier Retention Plate, Laser Engraved Travis Toy 12 Tiltback legs pre-installed, Ballistic Nylon Cover, Right-Angle Speaker Cable, Travis Toy 12 Product Badge |
