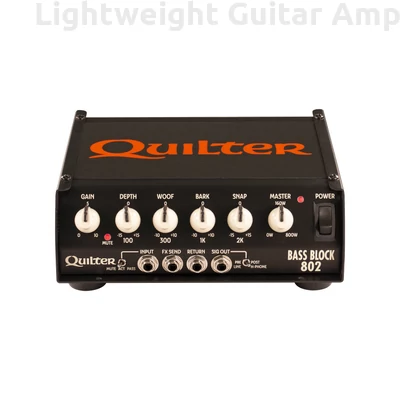

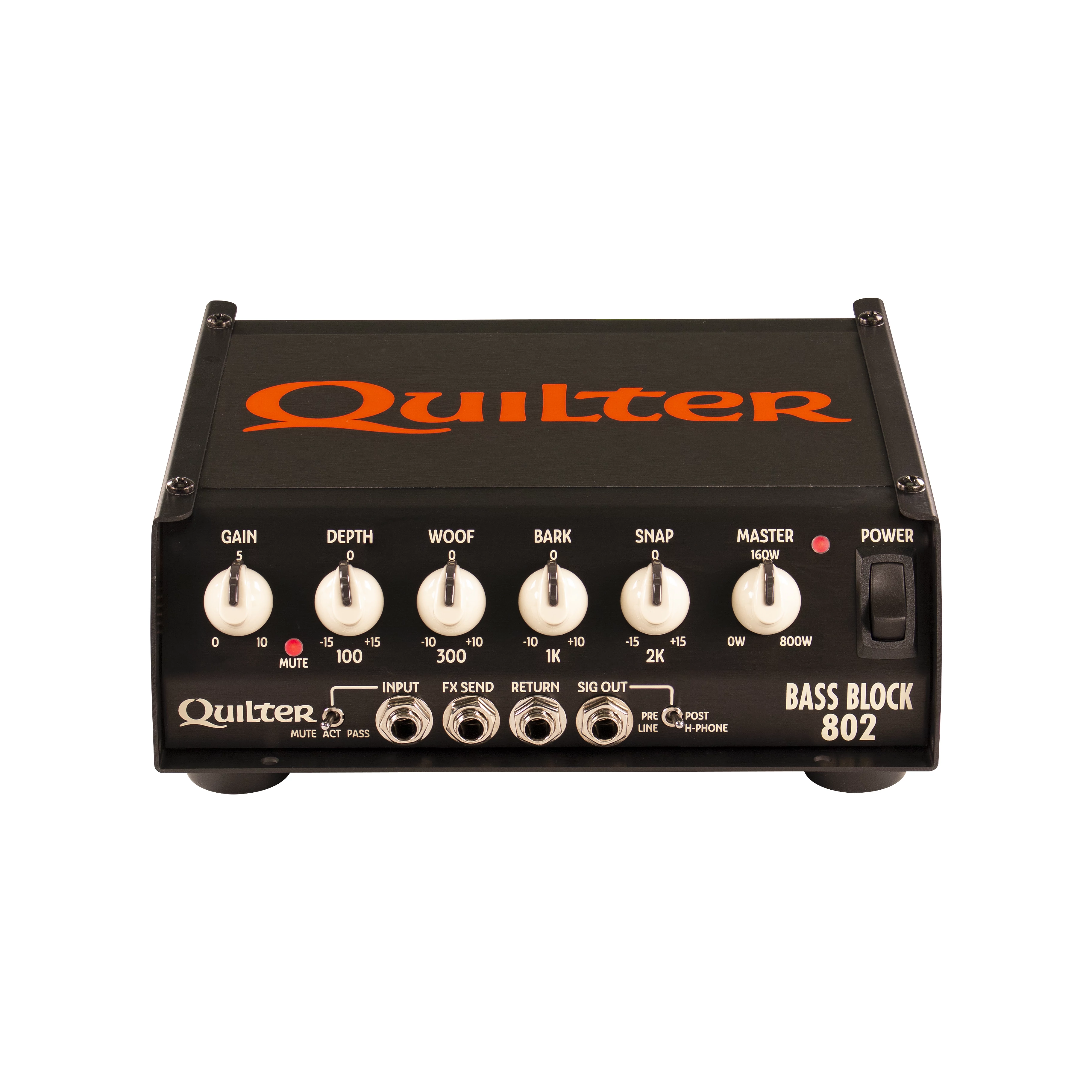

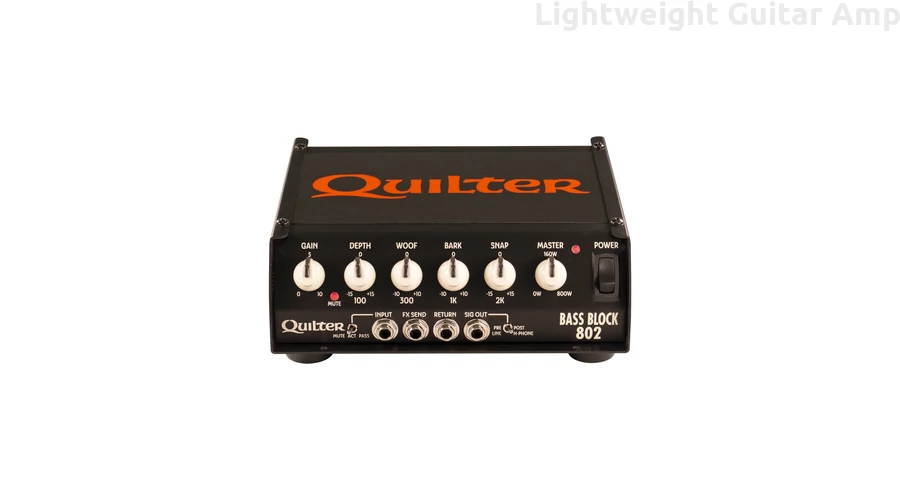

Quilter BassBlock 802
More pictures
Youtube videos
Description
The original Bass Block 800 set new standards for “bottomless” energy reserves and hard-hitting bass tone. The Bass Block 802 builds on this foundation with new features and refinements to further enhance your control of this well-proven platform. This 3.7-lb (1.6kg) powerhouse drives any good speaker to its full potential to keep the crowd moving all night long. Exclusive high current power section, combined with dual Speakon/Combo jacks, a lower noise floor, a quieter fan, a full 4-band EQ section, and Quilter’s latest headphone and direct-out interface features makes this our most advanced Bass Block ever! Responding to user requests, we have added an Effects Loop, plus a switchable pre-Master Line-Out for stage use, or post-Master Headphone outlet for silent practice. Solid aluminum heat sink and variable speed fan provide more cooling with less noise.
Parameters
| Weight | 1.6Kilograms |
| Handling power | 800Watt |
| Power Output | 450 watts-8 ohms, 800-watts, 4 ohms |
| Frequency Response | band-limited to 25Hz-15kHz. |
| AC Power Req. | IEC inlet, universal 100-240Vac, 50-60Hz, 250W typical, 1000W peak. |
| Input Connections | ¼-inch unbalanced, 2 meg, 4V peak. Switchable Mute, Passive, or Active (10dB pad). |
| LINE INPUT | XLR 10K balanced, 1V full scale. |
| Effects Loop | Series, pre-Master, 1V full scale. |
| Effects Send | ¼ inch unbalanced, 1K. |
| Effects Return | ¼ inch unbalanced, 47K (1K if FX Send is not used). |
| Switchable Sig Out | Balanced Line Pre-Master, or Mono Headphone Post-Master. |
| Line Out | 1.6V full scale, quasi-balanced 39 ohms each leg. |
| Headphone Out | Up to 3.3V full scale depending on Master Volume |
| XLR Line Input | Post pre-amp, Pre-Master, 1.3V FS, 4.4K balanced |
| Speaker Output | 4-8 ohms, 90V, 25A, peak dual Speakon™ Combo ¼-inch jacks. |
| DIMENSIONS | |
| H x W x D 8.5”(218mm) x 7.9” (201mm) x 3” (76mm) |
